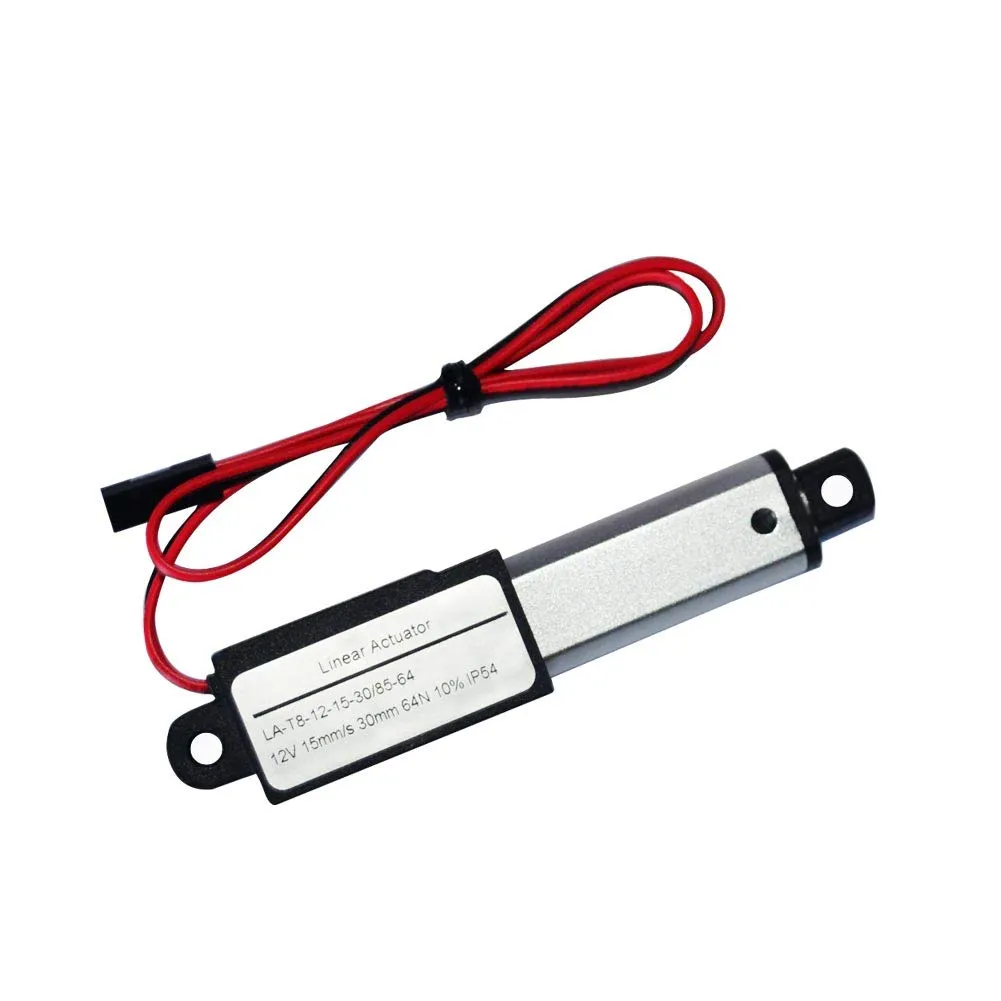

- [ Specifications ] Voltage: 12V DC, Stroke Length: 1.2"/30mm, Maximum Load: 64N/14lbs, Travel Speed Without Load: (15mm/s), Protection Class: IP54 Rated
- [ Compact Design ] The micro linear actuator is very exquisite and compact, weights about 0.1lbs/40g, compact size makes it an ideal device for robotics applications and other projects with tight space and weight requirements.
- [ Wide Applications ] Linear actuators a great pushers for medical devices, aviation, aerospace, simulation, commercial transport, adjust helms and doors, lift tables and other apparatus, adjust the TV antennae, deck chair, window and other application.
- [ Strong and Durable ] The linear actuator are made of high quality aluminium and ABS material, well constructed for long-term use. The linear actuator comes with end-limit switches that will turn off power to the motor when the device reaches the end of stroke to protect motor.
- [ Easy to Wire Up ] Our simplest micro linear actuator are powered by 12 volts DC, Apply voltage to the device and it will extend, reverse the polarity and it will retract. Package come with a hardware kit to make mounting easy.
ZCONIEY strive to offer high-quality products and services which meet and exceed every customer's expectations. Our micro linear actuator are responsibly made with high quality Eco-materials, first choice for your deck chair, lifting table, medical chair, window, solar tracker, automatic door and etc!
Specifications:
Power: 12V DC
Stroke Length: 1.2"/30mm
Retracted Length: 3.3"/84mm
Extended Length: 4.8"/123mm
Maximum Load: 64N/14lbs
Travel Speed Without Load: (15mm/s)
Protection Class: IP54 Rated
Noise: <55 dB
Inner Tube: aluminium
Wire Length: 13 in
Warranty: 24 month
Features:
• Simple power by 12V DC
• Easy to wire terminations, Red(positive ), Black(negative)
• Universal for most Medical devices, Aviation, Aerospace, Simulation, Commercial transport and home improvement project .
• Made of high impact resistant plastic and lightweight durable aluminium, for convenient and long-term use.
• Package come with a hardware kit to make mounting easy.
Package Includes:
30mm Micro linear Actuator Mounting brackets
- Package Dimensions : 6 x 1.1 x 1.1 inches; 2.4 ounces
- Department : unisex-adult
- Date First Available : November 4, 2019
- Manufacturer : ZCONIEY
