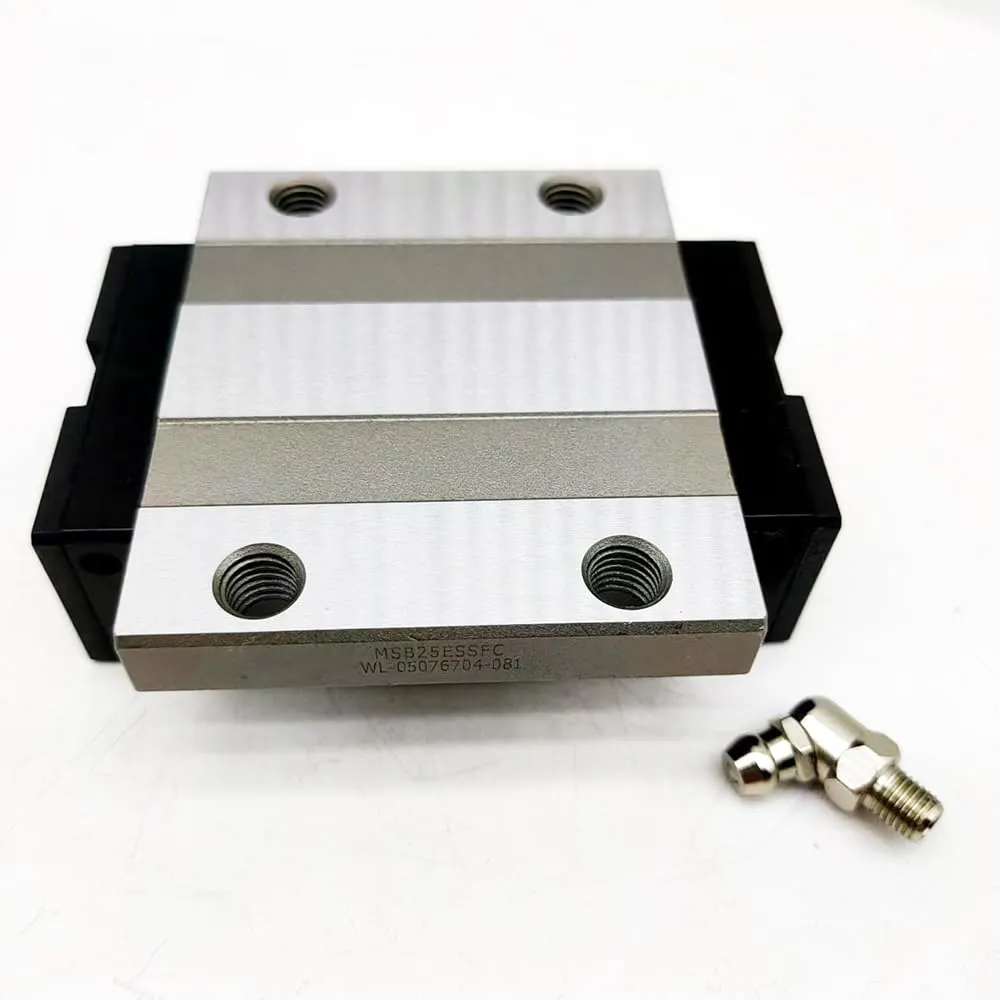

- Made by PMI , in Taiwan
- Quantity:1pc block /lot
- We supply full series of PMI linear guide. We can cut any length as your request.
- Capable of automatic centering
- High rigidity, four-way equal load design
The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSB series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion. The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability. Compact, Four-way Equal Load Self Alignment Capability Smooth Movement with LowNoise Interchangeability
- Product Dimensions : 3.94 x 3.94 x 3.94 inches; 5.51 Pounds
- Date First Available : July 6, 2023
- Manufacturer : Flavas
- Country of Origin : Taiwan
