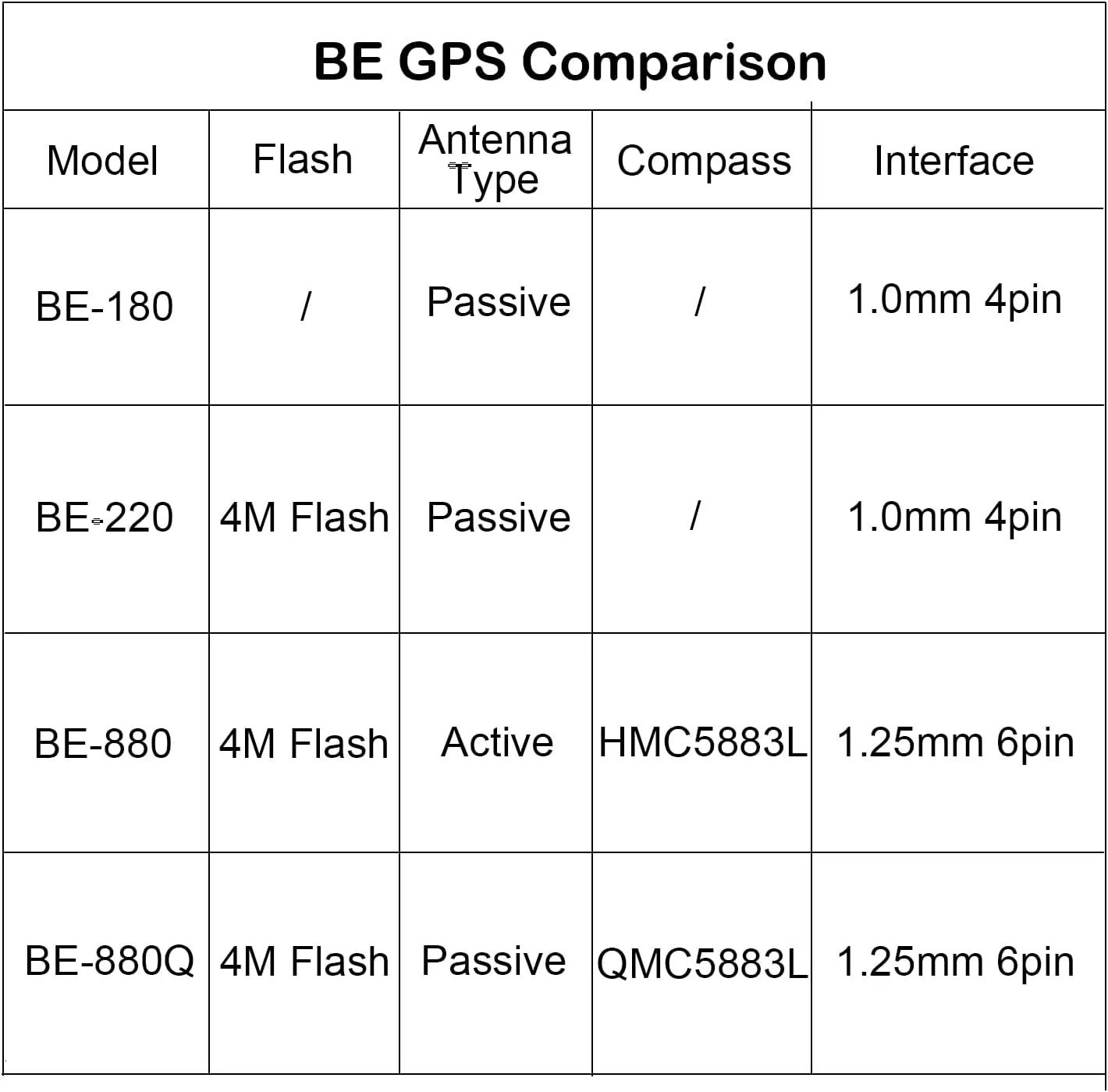

- This BE-880Q GPS Module using the latest 10th generation chip. BE-880 gps module is dual module compass, with and electronic compass IC QMC5883L
- BE 880Q gps module has flash to save configuration. So you do not need to reset next time when you use it

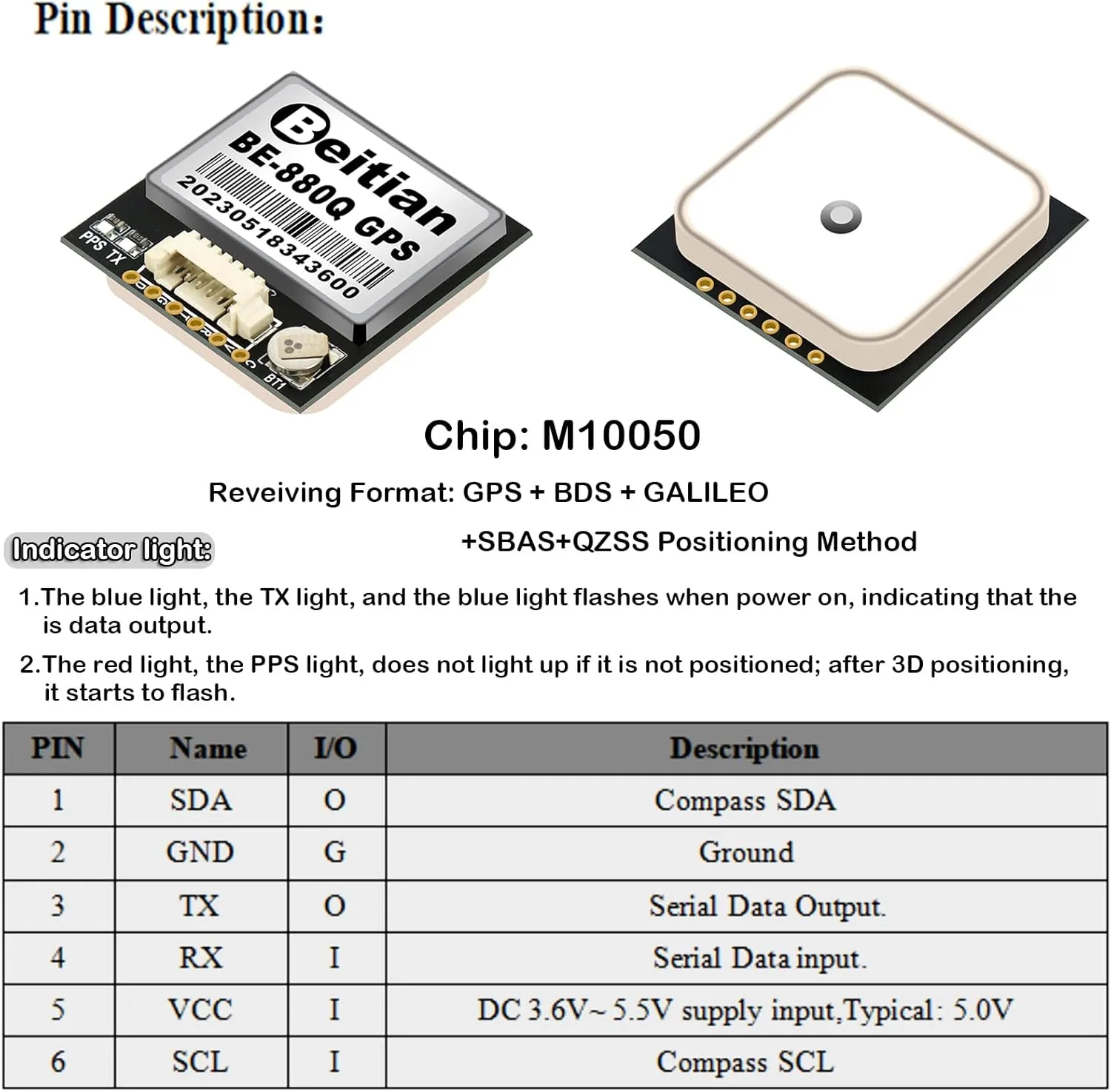

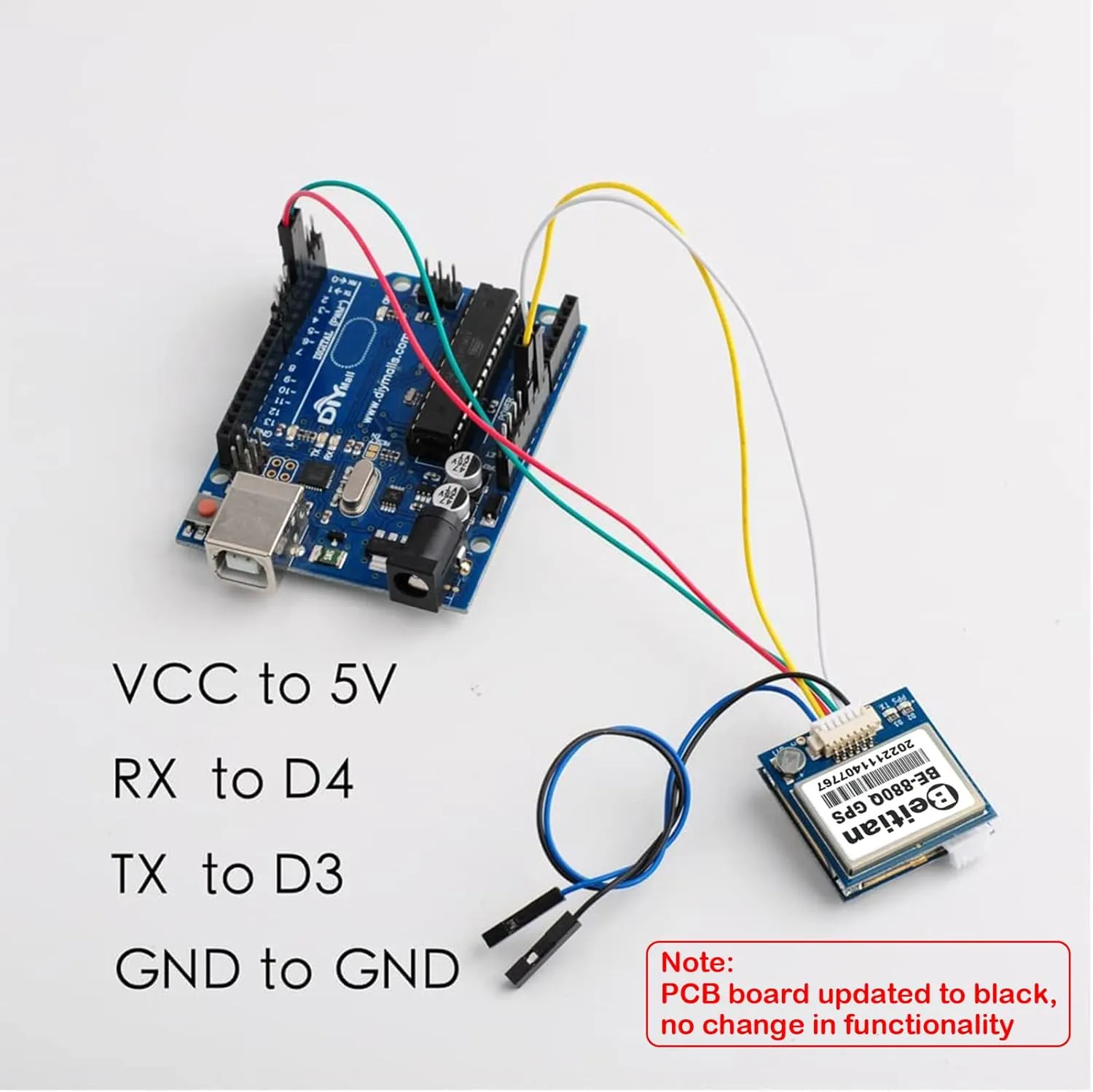

- When you use it for Raspberry Pi, there is no driver needed. Here is connection with RPi, red to 3.3v, black to GND, green to TXD white to RXD. The blue (TX) light flashes when power on, indicating there is data output
- DIts data Level is TTL or RS-232, Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
- Baud Rate : 4800bps to 921600bps, Default 38400bps. You can set the baud rate you need in this range according to your needs
Features
Chip: M10050
Compass: QMC5883L.
Frequency: GPS L1 C/A,QZSS L1 C/A/S,BDS B1I/B1C,Galileo E1B/C,SBAS L1 C/A:WAAS,EGNOS,MSAS,GAGAN
Operation Mode: GPS BDS GALILEO SBAS QZSS
Sensitivity: Track -166dBm, Re-arrest -160dBm, Cold Start -148dBm, Hot Start -160dBm
Horizontal Accuracy: 1.5m CEP 2D RMS SBAS Auxiliary(for open sky)
Speed Accuracy: 0.05m/s
Dynamic Heading Angle Accuracy: 0.3 deg
1PPS Time Accuracy: RMS 30ns, 99% 60ns
Start Time: Cold Start 27s, Hot Start 1s, Assisted Start 1s
Baud Rate: 4800bps - 921600bps, default 38400bps
Output Level: TTL level
Output Protocol: NMEA, UBX
NMEA Sentences: RMC, VTG, GGA, GSA, GSV, GLL
Update Frequency: 0.25Hz - 18Hz, default 1Hz
Second Pulse: Configurable from 0.25Hz to 10MHz, default period 1s, high level last for 100ms
Graviational Acceleration: <4g
Voltage: DC 3.6V - 5.5V, Typical 5.0V
Current: Normal 50mA/5.0V

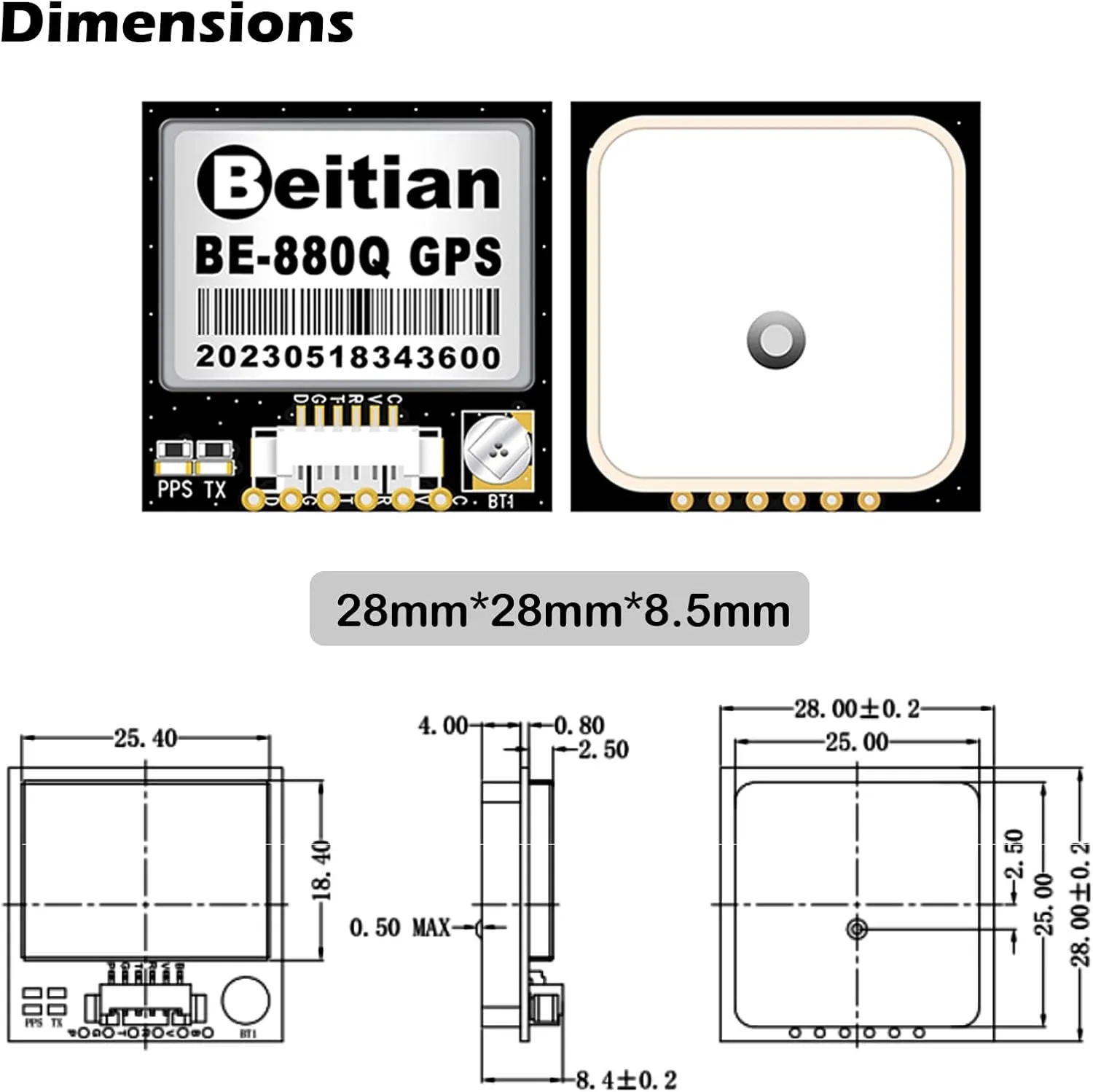

Size: 28*28*8.4mm
Connector: 1.25mm 6pin

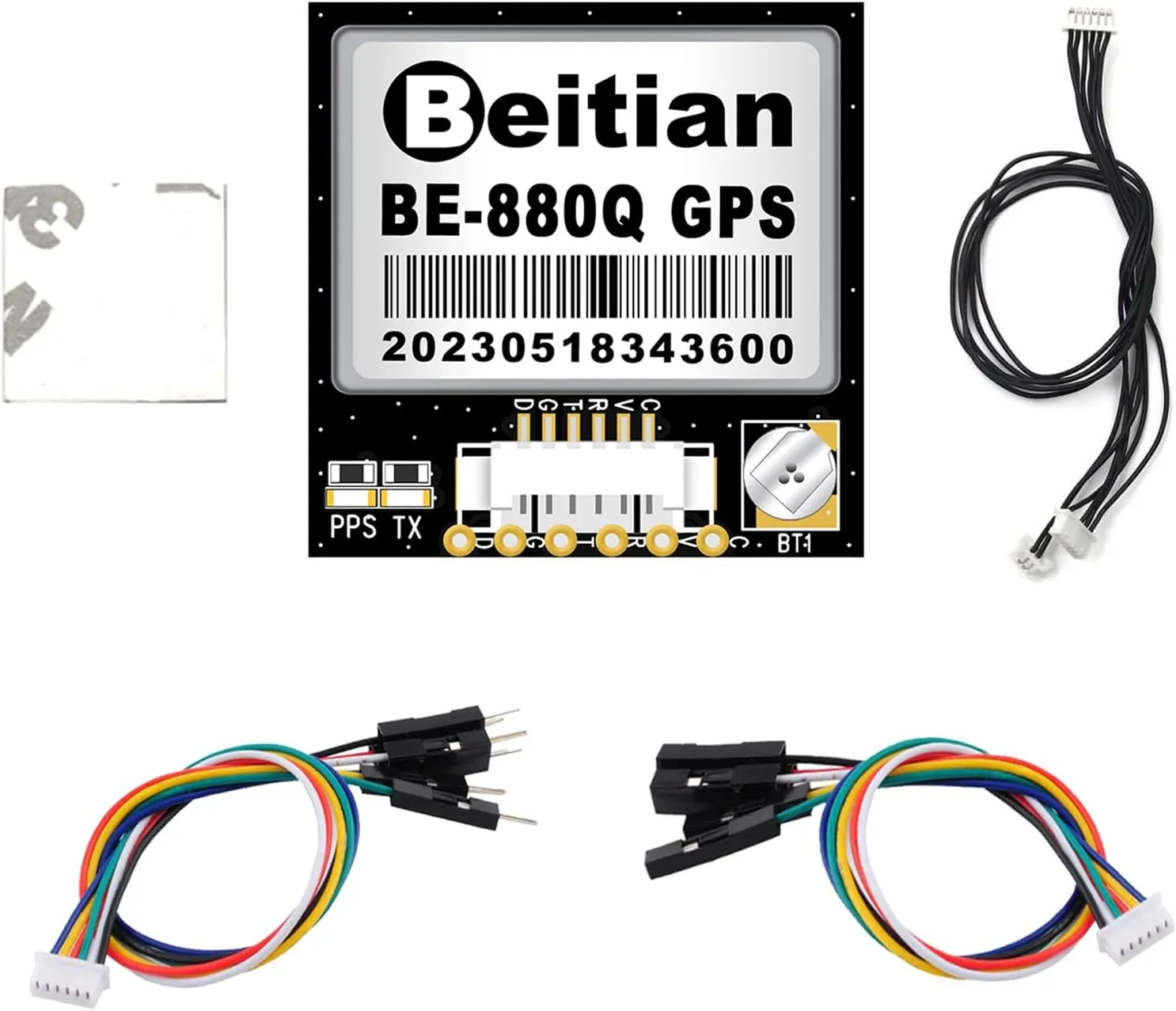

Package Included
1 x BE-880Q gps module
3 x cables
